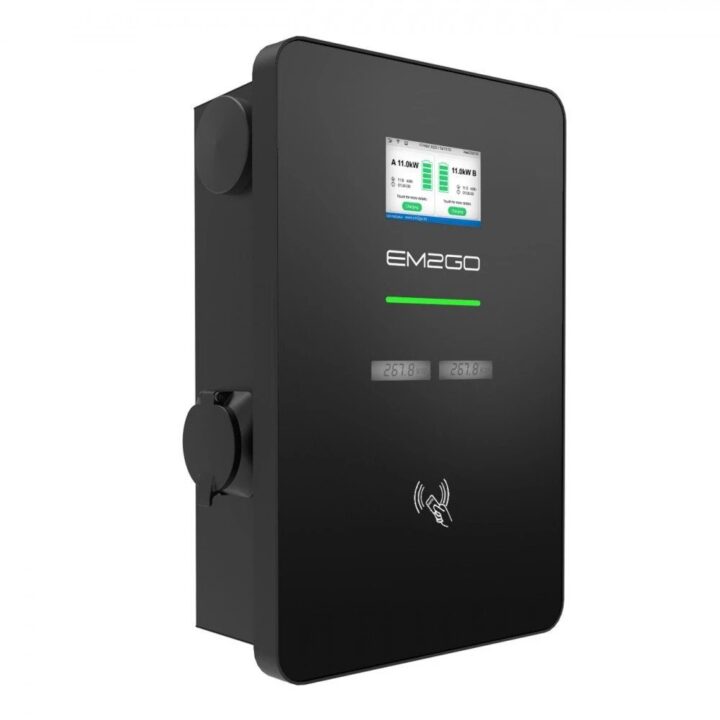

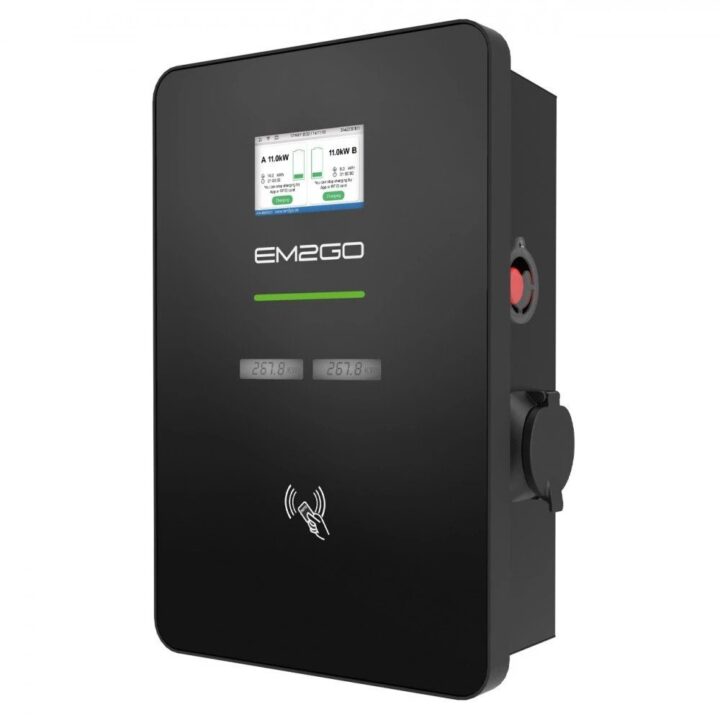

EM2GO 2x22kW, 2xMID, RFID,4G

Description

Specifications:

• Operating voltage: 400V AC ±10% , 50-60 Hz
• Operating current: 64A (32A in each socket)

• Integrated calibrated energy meters (MID)
• Integrated 4G module (EDGE/3G/4G)
• Display: 5-inch touch screen display, LED band
• Phase mode: 3 phases + N + PE
• Interfaces:
  • Ethernet (RJ-45)
  • WiFi (2.4GHz)
  • Mobile module (3G or LTE/4G)
• Compatible with EV Loader app.
• Backend connectivity:
  • OCPP standard 1.6-J (WS & WSS)
  • ModBus TCP support
  • Integrated RFID card reader
  • Connection: 2x type 2 socket
• Safety:
  • FI/LS switch,
  • All-current sensitive residual current sensors (RCMU),
  • Emergency stop button,
  • Over temperature, over/under voltage, over current,
  • Grounding protection
•  Operating temperature: -30 to +55 °C
• Splash water protection: IP65, IK08
•  Housing: steel
•  Front panel: glass

-> Download datasheet

2×22:EM2GO_2x22kW_socket_MID_eng.pdf
