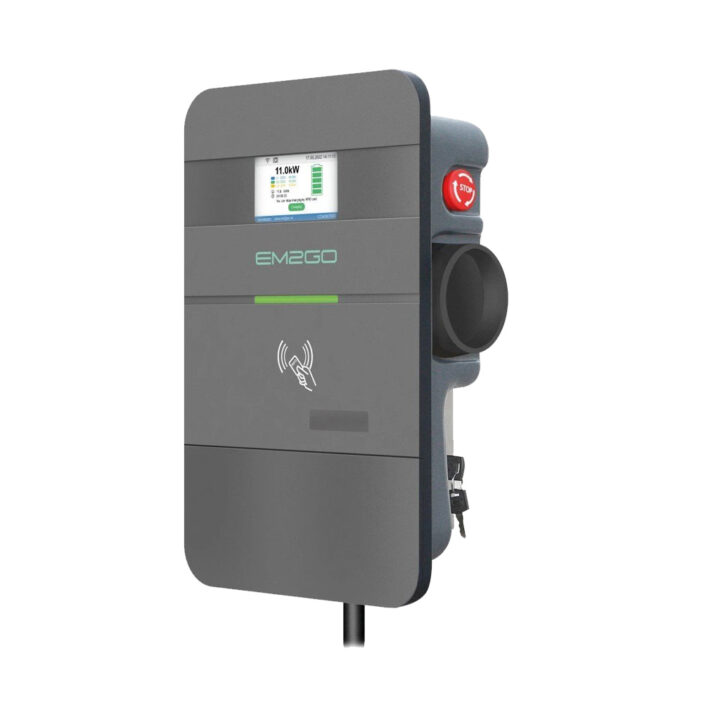

EM2GO 11kW, RFID, 4G, 7.5m cable (Type 2)

Description

Specifications:

• AC charger with 7,5m cable
• Operating voltage: 400V AC ±10% , 50-60 Hz
• Operating current: 16 A (11kW model)
• Integrated calibrated energy meters (MID)
• Integrated 4G module (EDGE/3G/4G)
• Display: 4.3 inch touch screen display, LED band
• Phase mode: 3 phases + N + PE
• Connection: type 2 socket
• Interfaces:
  • Ethernet (RJ-45)
  • WiFi (2.4GHz)
  • Mobile module (3G or LTE/4G)

• Compatible with EV Loader app.
• Backend connectivity:
  • OCPP standard 1.6-J (WS & WSS)
  • ModBus TCP support
  • Integrated RFID card reader
• Safety:
  • FI/LS switch,
  • All-current sensitive residual current sensors (RCMU),
  • Emergency stop button,
  • Over temperature, over/under voltage, over current,
  • Grounding protection
•  Operating temperature: -30 to +55 °C
• Splash water protection: IP65, IK08
•  Housing: steel
•  Front panel: glass
